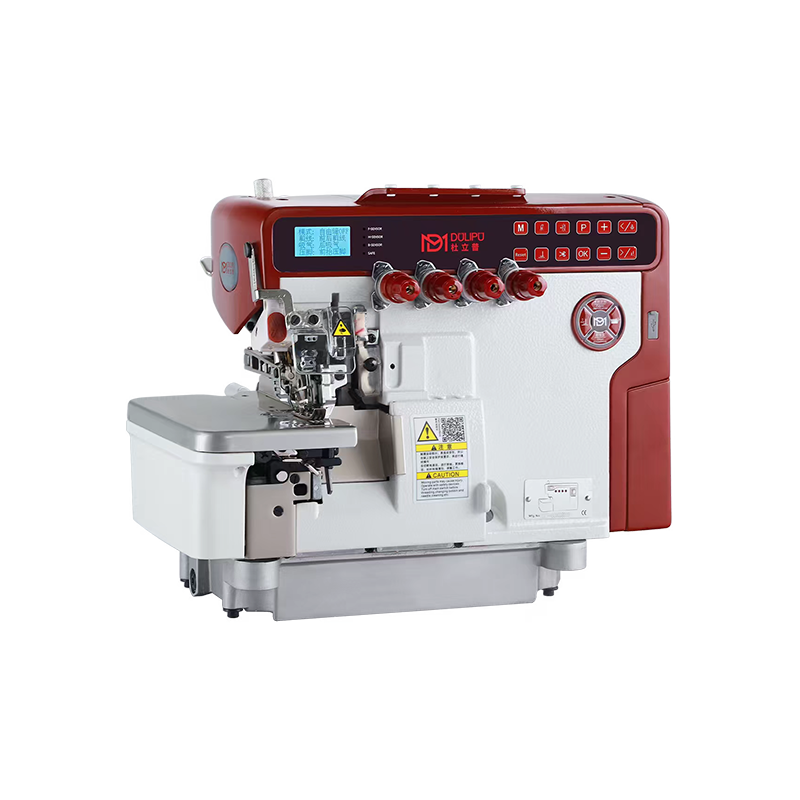

Stepper Motor Intellgent Computerized Overlock Machine
Suitable for dothing, underwear, bedding and thin packaging fabrics overlap seams, decorative seams, inaddition to a variety of stitches to choose from, sewing wireless head.
Keywords:
Category:
Details
Features:

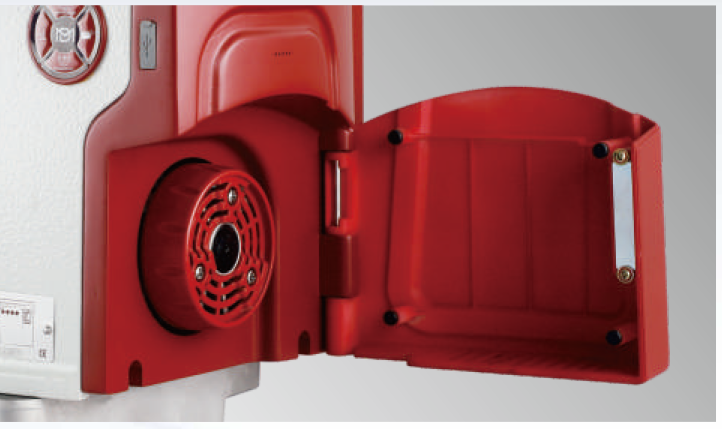

•Patented built-in handwheel design, never winding
•Thin material, medium thick material, thick material, one click adjustable
•Teeth height, one click switch
•Patented integrated upper cover design, anti-leakage
•Ceramic wire, durable and wear-resistant
 |
 |
 |
 |

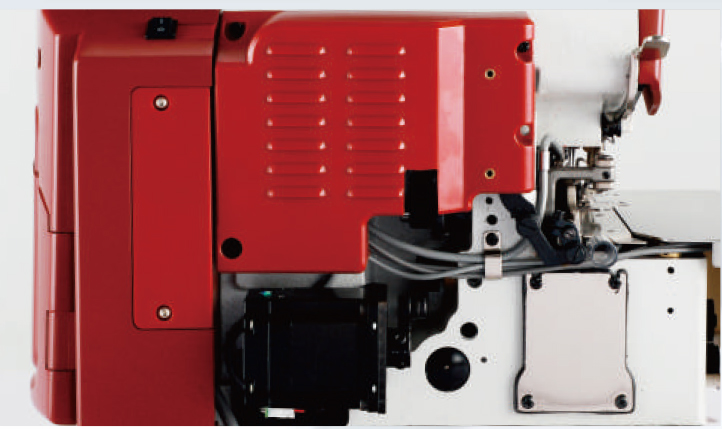

1.Step motor bidirectional control lift foot and wire cutting, to achieve utra-quiet, more durable.
2.Lifting foot and cutting line response time is faster, shorter thread.
3.Optimize the stroke structure of the needle rod, the upper bending needle remote rod and the feeding CAM mechanism, so that it can really achieve thickness and thickness, and the slope is very smooth through the bone seam.
4. A third light eye is provided at the back end of the side of the needle plate to effectively prevent fabricdamage when turning and sewing.
Suitable for dothing, underwear, bedding and thin packaging fabrics overlap seams, decorative seams, inaddition to a variety of stitches to choose from, sewing wireless head.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
DLP C9S-3UT |
Basic three thread |
DCx27 11# |
1 |
3 |
- |
4 |
0.8-4.2 |
0.7-2 |
5.0 |
7000 |
|
DLP C9S-4UT |
Basic four thread |
DCx27 11# |
2 |
4 |
2 |
2x4 |
0.8-4.6 |
0.7-2 |
6.0 |
7000 |
|
DLP C9S-5UT |
Basic five thread 3x4 |
DCx27 14# |
2 |
5 |
3 |
3x4 |
0.8-4.2 |
0.7-2 |
5.0 |
6500 |
|
DLP C9S-6UT |
Basic six thread |
DCx27 11# |
3 |
6 |
3x2 |
3x2x4 |
0.8-4.2 |
0.7-2 |
5.0 |
6500 |
